Multi Jet Water Meter
Your Professional Multi Jet Water Meter Supplier
Ningbo Tongtuo Water Meter Factory, built in 1987, is located in the western suburb of Ningbo, one of the most economically developed cities in the east of China, adjacent to Ningbo Airport, Ningbo Railway Station, and the one of the world's largest seaport, Ningbo Port.Holding the advanced equipments, devoted by experienced water meter engineers and technicians, Tongtuo's manufacturing offerings including the full series of Single jet water meter, Multi jet water meter, Volumetric rotary piston water meter, Woltman water meter, and all kinds of water meter parts and accessories.
Why Choose Us
Our Service
We can truly support our customers with one-station services, from the very beginning of production to the shipping to the destination warehouses. We are always insisting on the idea of quality first, more competitive prices, and customer satisfaction.
Our Factory
With over 35 years experience in water meter manufacturing since 1987, we are professional in producing all kinds of water meters and water meter parts, which the products reach the international level.
Production Market
We Tongtuo started to build long cooperation relationship with overseas' customers.We have been selling qualified water meters and water meter parts to the world-leading water meter factories since then.
Production Equipment
Equipment produced by the company is Injection Molding Machines, CNC Lathes & Milling Machines, Ultrasonic Welding Machines, Automatic Screw Fastening Machines, Automated Assembly Lines, plasma Test Benches.
Advantages of Multi Jet Water Meter
Design: Multi-jet water meters feature a distinctive design with multiple water inlet ports arranged in a circular pattern. These ports generate multiple jets of water that impact a turbine, resulting in the rotation of a magnetic coupling. This rotation is then converted into measurable units to determine water flow.
Accuracy: Multi-jet water meters are known for their excellent accuracy, even at low flow rates. The multiple jets evenly distribute the water flow, reducing the impact of fluctuations or disturbances, thereby enhancing measurement precision. This accuracy ensures reliable billing and efficient water management.
Wide Measurement Range: Multi-jet water meters can handle a broad range of flow rates, making them suitable for various applications. Whether it's monitoring individual household consumption or measuring water usage in commercial or industrial facilities, these meters provide accurate readings across different flow ranges.
Easy Installation and Maintenance: Multi-jet water meters are designed for easy installation, with standardized connections that simplify the process. They are compact in size, making them compatible with most plumbing systems. Additionally, these meters require minimal maintenance, reducing operational costs and ensuring hassle-free operation.
Durability: Built with robust materials such as brass or stainless steel, multi-jet water meters exhibit high durability and resistance to corrosion. This enables them to withstand harsh environmental conditions, ensuring long-term performance and minimizing the need for frequent replacements.
Fuite Détection: Multi-jet eau compteurs can efficacement détecter fuites dans le système. Par surveillance eau flux patterns, any irrégularités ou inattendues variations can indiquer a potentiel fuite. This early detection helps minimize water loss, prevent damage, and reduce costs associated with repairs.
Compatibility: Multi-jet water meters are compatible with various accessories and technologies, allowing for seamless integration into advanced water management systems. They can be integrated with remote reading systems, enabling automated data collection and remote monitoring for efficient consumption analysis.
Specification
|
Parameter |
Specification |
|
Model Series |
LXS-15E to LXS-50E |
|
Type |
Wet Type Multi Jet Water Meter |
|
Shell Material |
Brass Shell or Iron Shell |
|
Accuracy Class |
Class B (ISO 4064) |
|
Connection Types |
Threaded (BSP/T) |
|
Size Range |
DN15-DN50 (½" to 2") |
|
Pressure Rating |
1.6MPa (PN16) |
|
Temperature Range |
Cold water: ≤40°C ; Hot water: ≤90°C |
Brass: Brass is the most commonly used material for water meters, featuring excellent mechanical strength, corrosion resistance and processability.
Bronze: Similar to brass, it has better corrosion resistance, but its cost is slightly higher than that of brass. Fewer water meters choose bronze as the material.
Cast Iron: Cast iron material is usually used for large-diameter water meters (>DN50), with a relatively low cost. However, it is prone to rust and has high requirements for anti-corrosion coatings.
Stainless Steel: Stainless steel water meters have the best corrosion resistance, but they are relatively expensive and difficult to process. They are usually used in Marine and special industries.
Plastic: Plastic water meters typically use reinforced nylon, PPO, etc. Light in weight, rust-free and low in price.
Types of Multi Jet Water Meter
Single Jet Meters
The simplest variant within the multijet category, single jet meters use one inlet channel to direct water flow onto turbine vanes, causing rotation proportional to water volume.
01
Multiple Jet Meters
These advanced meters utilize several precisely aligned jets to evenly distribute water across the impeller, enhancing rotational balance and measurement precision.
02
Horizontal Meters
Designed specifically for installation in horizontal pipelines, these meters optimize internal mechanics for sideways water flow, ensuring accurate readings and easy access.
03
Vertical Meters
Engineered for upright installation, vertical multijet meters maintain accuracy when water flows from bottom to top or top to bottom in vertical pipe runs.
04
Submersible Meters
Built to operate fully submerged, these rugged meters are sealed against water ingress and designed to withstand constant exposure to wet environments.
05
Installation Process of Multi Jet Water Meter
Select the Optimal Location: Install in a dry, accessible area protected from direct sunlight, freezing temperatures, and physical damage. Ensure adequate clearance for reading and maintenance.
Prepare a Stable Foundation: For above-ground or outdoor installations, use a level, solid concrete base that extends beyond the meter’s footprint. Avoid sharp objects or debris that could compromise seals.
Install in Correct Orientation: Mount the meter horizontally with the flow arrow aligned in the direction of water movement. Vertical installation may require specific models rated for such use.
Use Proper Sealing and Connections: Apply rubber gaskets or O-rings between pipe flanges to prevent leaks. Tighten connections evenly with a wrench, avoiding over-torquing that could crack the housing.
Flush the Line Before Installation: Remove debris, sand, or scale from the pipeline before connecting the meter to prevent internal damage.
Test for Leaks and Flow: Slowly pressurize the system and inspect all joints for leaks. Verify that the meter registers flow when water is drawn.
Protect the Installed Unit: Cover exposed piping and electrical connections (if applicable). Use weatherproof enclosures for outdoor installations.
Residential Water Billing: Multi-jet water meters are often used in residential areas to accurately measure water consumption for billing purposes. They are usually installed in homes to determine the amount of water used.
Commercial and Industrial Applications: These meters can also be found in commercial and industrial settings where water usage needs to be closely monitored for billing or process control.
Leak Detection
Multi-jet meters are useful for detecting leaks in water distribution systems. If there is a significant discrepancy between the volume of water entering a property and the volume leaving, it can indicate a leak.
Irrigation
In agriculture and landscaping, multi-jet water meters can be used to measure the amount of water used for irrigation, ensuring efficient and responsible water use.
Municipal Water Management
Water utilities often use multi-jet water meters to monitor water consumption throughout their service areas and manage water distribution more effectively.
FAQ
As one of the most professional multi jet water meter manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy customized multi jet water meter made in China here from our factory.

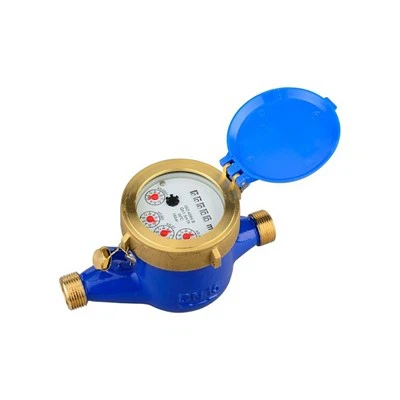

Brass Shell Dry Type Multi Jet Water Meter, Mechanical Water Meter, Plastic Connectors Nylon Water Meter
