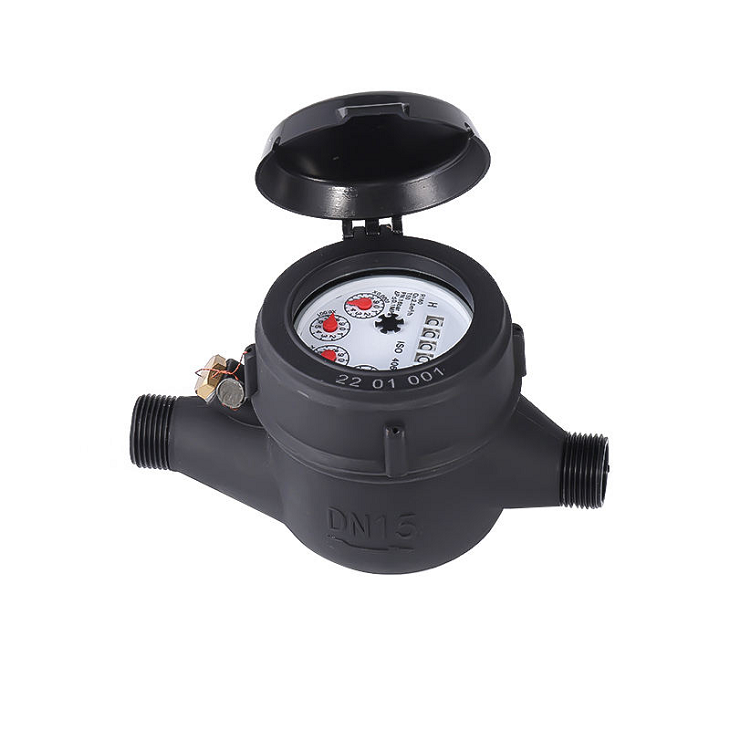

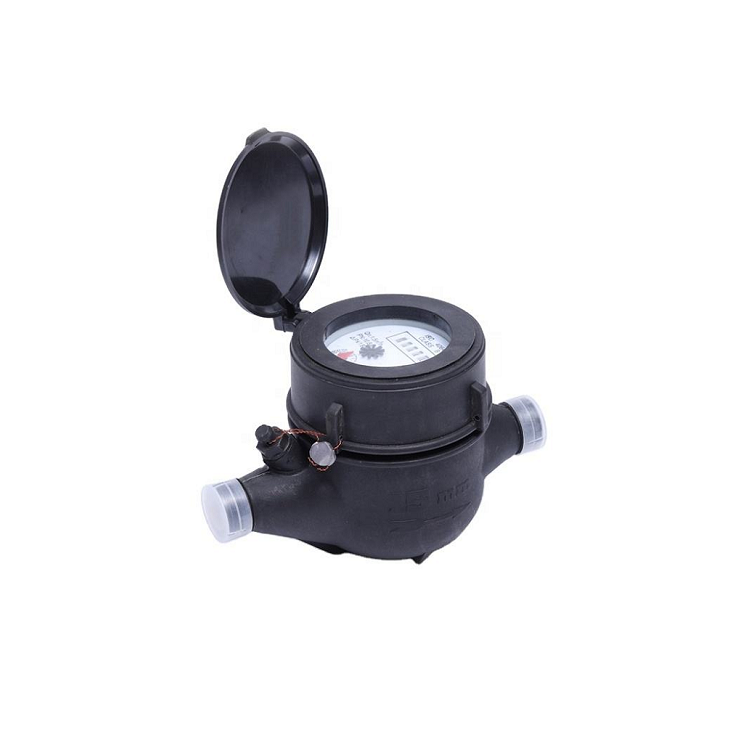

Tongtuo introduces its innovative Plastic Multijet Water Meter series, now available with dual material options: high-strength Nylon or engineering-grade ABS construction. This corrosion-resistant water meter delivers exceptional accuracy and durability for residential and light commercial applications, providing reliable performance without the maintenance challenges of metal components.
Key Features
Advanced Multijet Technology
Multiple inlet jets ensure ±2% accuracy across all flow rates (0.03-7m³/h), maintaining precision in both low and high consumption scenarios.
Dual Material Options
Choose between Nylon (superior impact resistance) or ABS (excellent chemical resistance) based on your specific application requirements.
Reinforced Nylon Water Meter Construction
Glass-fiber reinforced Nylon (PA66+GF30%) or ABS composite body provides exceptional corrosion resistance and 3+ year service life.
Integrated Plastic Connectors System
Precision-molded Plastic Connectors ensure leak-proof connections and eliminate galvanic corrosion in mixed-material piping systems.
Dry Dial Protection
Hermetically sealed register completely isolates measurement mechanism from water contact, preventing fogging and mineral buildup
Lightweight Design
70% lighter than brass equivalents (0.45kg for DN15), reducing installation time and structural support requirements
Technical Specifications
Model: LXSC-15P to LXSC-25P
Type: Plastic Multijet Water Meter
Body Material: Reinforced Nylon (PA66+GF30%)
Connection Type: Plastic Connectors
Sizes Available: DN15, DN20, DN25 (½" to 1")
Accuracy Class: R=100 (ISO 4064)
Max Pressure: 1.6MPa (PN16)
Temperature Range Cold water: ≤40°C
Performance Data
Measurement Range: R=100 (Qmax/Qmin)
High Zone Accuracy: ±2% (Qt to Qmax)
Low Zone Accuracy: ±5% (Qmin to Qt)
Flow Range: 0.03m³/h to 7m³/h (depending on size)
Readout Resolution: 0.0001 m³
Maximum Reading: 99999.9999 m³
Material Selection Guide
Choose Nylon: Superior impact strength, better UV resistance, ideal for outdoor installations
Choose ABS: Excellent chemical resistance, lower moisture absorption, perfect for industrial applications
Why Choose This Plastic Multijet Water Meter?
This Plastic Multijet Water Meter represents the next generation in water measurement technology. The combination of multijet accuracy and advanced polymer materials eliminates traditional brass meter problems including scale buildup, dezincification, and theft risk. The precision Plastic Connectors ensure perfect sealing while the Nylon Water Meter body provides maintenance-free operation.
Applications
• Residential apartment submetering
• Irrigation water measurement
• Temporary water supply systems
• Coastal areas with corrosive water conditions
• Budget-conscious municipal projects
Request pricing for DN15-DN25 Plastic Multijet Water Meter :
Email: junetang@nbtongtuo.com
