ISO 4064 Class B meters are widely recognized for their accuracy and reliability in measuring water consumption. As a supplier of ISO 4064 Class B meters, I understand the importance of proper installation to ensure the optimal performance of these meters. In this blog post, I will discuss the installation clearances required for ISO 4064 Class B meters, providing you with the knowledge you need to install these meters correctly.
Understanding ISO 4064 Class B Meters
Before delving into the installation clearances, it's essential to understand what ISO 4064 Class B meters are. ISO 4064 is an international standard that specifies the requirements for water meters. Class B meters are designed to provide a high level of accuracy in measuring water flow. They are commonly used in residential, commercial, and industrial applications where precise water measurement is crucial.
Importance of Installation Clearances
Proper installation clearances are vital for the accurate and reliable operation of ISO 4064 Class B meters. These clearances ensure that the meter is not affected by external factors such as turbulence, pressure fluctuations, or mechanical vibrations. By maintaining the recommended clearances, you can minimize measurement errors and extend the lifespan of the meter.
Installation Clearances for ISO 4064 Class B Meters
The installation clearances for ISO 4064 Class B meters typically include upstream and downstream clearances. These clearances are measured in terms of pipe diameters and are designed to provide a stable flow of water through the meter.
Upstream Clearances
Upstream clearances refer to the distance between the meter and any upstream fittings, such as valves, elbows, or reducers. The purpose of upstream clearances is to allow the water flow to become fully developed and laminar before entering the meter. This helps to reduce turbulence and ensure accurate measurement.
According to ISO 4064, the minimum upstream clearance for Class B meters is typically 10 times the nominal diameter of the meter. For example, if you are installing a 50 mm diameter meter, the minimum upstream clearance should be 500 mm. However, in some cases, a longer upstream clearance may be required, especially if there are complex pipe configurations or high flow rates.
Downstream Clearances
Downstream clearances refer to the distance between the meter and any downstream fittings, such as valves or bends. The purpose of downstream clearances is to prevent backflow and ensure a smooth flow of water out of the meter. This helps to maintain the accuracy of the meter and prevent damage to the internal components.
The minimum downstream clearance for ISO 4064 Class B meters is typically 5 times the nominal diameter of the meter. Using the same example of a 50 mm diameter meter, the minimum downstream clearance should be 250 mm. Similar to upstream clearances, a longer downstream clearance may be necessary depending on the specific installation conditions.
Additional Considerations
In addition to upstream and downstream clearances, there are other factors to consider when installing ISO 4064 Class B meters. These include:
Mounting Orientation
ISO 4064 Class B meters are typically designed to be installed in a horizontal position. This ensures that the water flow is parallel to the axis of the meter, which helps to improve measurement accuracy. However, some meters may be suitable for vertical installation, provided that the manufacturer's instructions are followed.
Accessibility
The meter should be installed in a location that is easily accessible for maintenance and reading. This includes providing sufficient space around the meter for opening the meter cover and accessing the internal components.
Protection from Environmental Factors
The meter should be protected from extreme temperatures, humidity, and other environmental factors that could affect its performance. This may involve installing the meter in a meter box or a protected enclosure.
Our Product Range

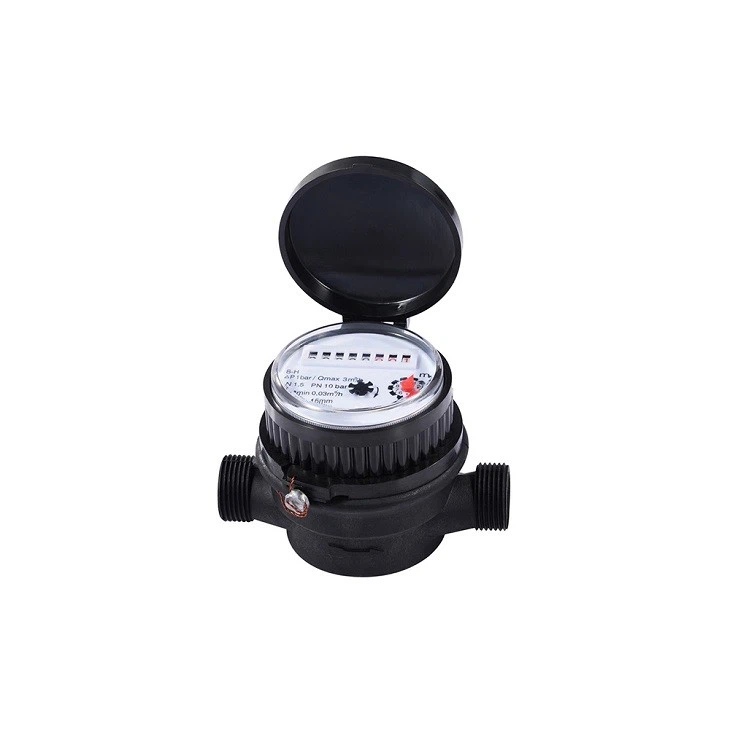

As a supplier of ISO 4064 Class B meters, we offer a wide range of products to meet your specific needs. Our product range includes Plastic Single Jet Water Meter, Russian Market Single Jet Water Meter, and Wet Brass Single Jet Water Meter. These meters are designed to provide accurate and reliable water measurement, and they are compliant with ISO 4064 Class B standards.
