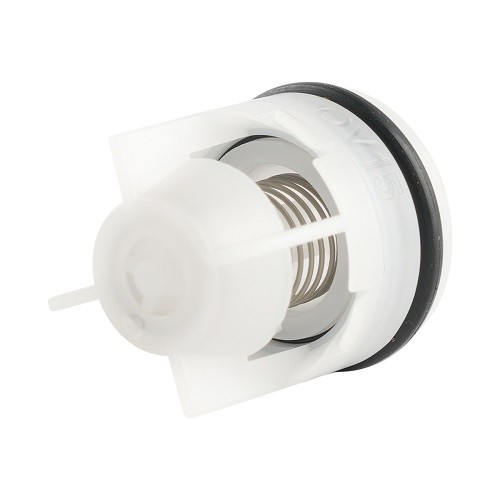

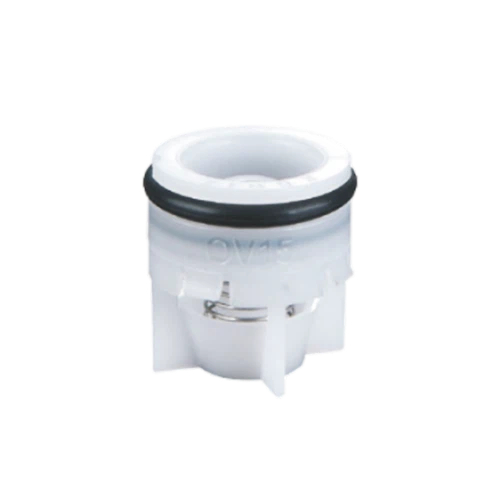

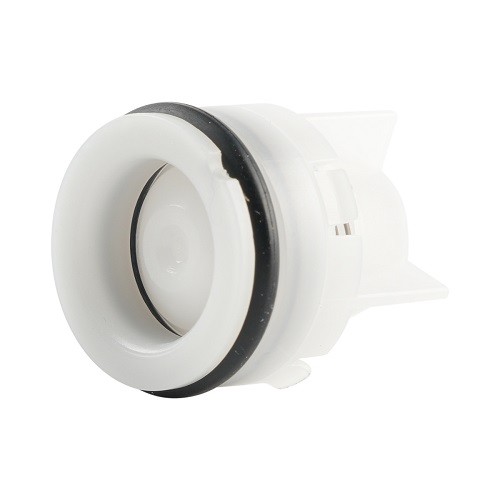

OV15 Non-return Plastic Check Valve

Introduction



The OV15 non-return check valve is a precision-engineered miniature check valve designed exclusively for water media up to 95°C. Its heat-resistant POM body and 304 stainless steel spring deliver reliable backflow prevention in the smallest footprints. This compact check valve fits into equipment where standard-sized valves simply cannot go. As a true small check valve, the OV15 provides full 95°C capability in a body shorter than 20mm. Every one-way check valve is produced with fully automated manufacturing, ensuring consistent quality at a competitive check valve cost. The OV15 POM check valve represents the ideal balance of size, performance, and affordability.

The OV15 non-return check valve excels in space-constrained hot water circuits where reliability cannot be compromised. Typical applications include:

Portable camping water heaters – Mounted inside compact propane-heated units. Compatible with Joolca, Coleman, or Eccotemp portable systems.

Espresso machine group heads – Prevents backflow in the brew boiler circuit. Fits commercial and home machines from La Marzocco, Rocket, or Rancilio.

Under-sink point-of-use heaters – Installed directly at the heater outlet. Brands: InSinkErator, Steibel Eltron mini-tanks.

Fish tank heating systems – Maintains one-way flow in aquarium heater loops. Equipment from Eheim, Fluval, or Tetra.

Dental instrument sterilizers – Blocks backflow from the drain line. Models from Tuttnauer, Midmark, or SciCan.

Portable ultrasonic cleaners – Prevents reverse flow in heated cleaning baths. Brands: Branson, Elma, or Crest.

Medical fluid warming cabinets – Ensures directional flow in IV solution warmers. Equipment from Smiths Medical, Baxter, or Becton Dickinson.

Small-bore plumbing in RVs and boats – Installed in 1/2″ or 3/8″ lines where space is at a premium. Fits systems from Shurflo, Seaflo, or Jabsco.

Because the OV15 is a true small check valve, it can be installed in manifold blocks, behind access panels, or inside appliance chassis with minimal clearance.

Ultra-compact POM body – Rated for continuous 95°C service. The OV15 body length is just 21.5mm (1/2″ version), making it one of the smallest compact check valve options available for hot water.

304 stainless steel spring – Fully corrosion-resistant in hot water. Provides consistent closing force for over 100,000 cycles. Food-grade certified.

Dual seal options – EPDM for standard hot water applications; silicone for ultra‑flexible, taste‑neutral performance. Both are food-grade.

True miniature design – The OV15 miniature check valve weighs only 12 grams. Its small size reduces material cost and allows denser equipment layouts.

Low cracking pressure – Only 0.025 bar required to open, suitable for gravity-fed and low-head systems.

The OV15 is available in 1/2″ BSP female threads (NPT also available) with push-fit or barbed connection options for tubing. The full bore design handles flow rates up to 12 L/min with minimal pressure drop (<0.08 bar). Despite its compact size, the guided poppet ensures positive sealing even after thousands of thermal cycles from 20°C to 95°C.

Our factory operates fully automated injection molding cells with integrated robotic handling. After molding, components move to a rotary assembly line where spring insertion, seal placement, and thread torquing occur without human contact. Each one-way check valve undergoes 100% automated pressure decay testing (leak threshold <0.1 cc/min) and laser marking for full traceability. This closed-loop process ensures that every POM check valve has identical opening pressure and seal integrity – the first piece matches the millionth. Minimal human intervention eliminates contamination and assembly errors.

Because our fully automated production reduces labor and scrap rates, we offer an attractive check valve cost for the OV15. The check valve cost is significantly lower than comparable brass or stainless steel miniature valves, while providing superior scaling resistance and silent operation. Bulk orders receive volume discounts. Contact us for a check valve cost quotation based on your annual requirements.

Many small check valve designs made of brass suffer from dezincification, scale binding, and noisy closure in hot water. The OV15 POM check valve eliminates all these issues. The POM body never scales; the stainless spring never rusts; the soft EPDM poppet cushions closing for silent operation. For OEMs building compact appliances, the OV15 miniature check valve reduces enclosure size, weight, and material cost compared to metal alternatives.

Each production batch is tested for:

Pressure decay leak test (10 bar, 15 seconds, <0.1 cc/min)

Thermal cycling: 500 cycles from 20°C → 95°C → 20°C

Cracking pressure verification (20 samples per lot)

100% automated optical inspection for dimensions and seal seating

We supply OV15 compact check valve units with full material certificates and ISO 9001 traceability. Samples are available within 5 working days. Automated production ensures 1-2 week lead times for standard orders. Request a datasheet, CAD model, or sample to evaluate the check valve cost and performance.
